| Brand | Rockford Fosgate |
| Speaker Maximum Output Power | 1600 Watts |
| Connectivity Technology | [Other Wired] |
| Audio Output Mode | Stereo |
| Mounting Type | Plug Mount,Saddle Mount |
- The HD14-STG5 is a high-performance 6-speaker, 1,600-watt amplified audio system built for select 2014 and newer Harley Davidson Road Glide and Street Glide Motorcycles
- Audio engineered to perform on the open road, our M5 audio kits are the loudest and clearest audio systems we’ve created. Featuring a simple plug-and-play installation, paired with full throttle output, this audio system delivers an exceptionally superior on-bike audio experience like no other
- The HD14-STG5 includes the TMS65, a pair of powerful 6.5” full range fairing speakers with an ultra-efficient 25mm dome tweeter, and the TMS69BL14, a pair of our 6x9” Element Ready saddlebag speaker retrofit kit for factory Harley Davidson hardshell bags (non fiberglass models)
- The HD14-STG3 also includes our Dual 10” saddlebag subwoofer system, including sub enclosures that create dual air space to keep the 6x9" saddlebag speakers separate from 10" subwoofers. All powered by two M5-800X4 IPX6 Element Ready amplifiers, totaling 1600-watts, and two RFK-HD14M5, amp install kits
- Famous Rockford Fosgate build quality with a full 2-year warranty (Note: *You will need to flash your factory radio to use this kit)
| Model Name | HD14-STG5 |
|---|---|
| Speaker Type | Coaxial and Subwoofer |
| Special Feature | Purpose built for the harsh motorcycle environment, this kit is Element Ready, designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time. |
| Subwoofer Diameter | 10 Inches |
| Unit Count | 1.0 Count |
| Included Components | Two 800W 4-Channel Amps, Two Amp Installation Kits, Pair of Saddlebag Speakers, Pair of 10" Saddlebag Subwoofers, Pair of Fairing Speakers |
| Product Dimensions | 5"D x 6"W x 9"H |
| Item Weight | 15 Pounds |
| Is Waterproof | FALSE |
| Warranty Type | Full |
| Number of Items | 1 |
| Control Method | App, Remote, Touch, Voice |
| Speaker Size | 10 Inches |
| Power Source | Corded Electric |
| Woofer Diameter | 10 Inches |
| Vehicle Service Type | Select 2014+ Road Glide and Street Glide Motorcycles |
| UPC | 780687362508 |
| Manufacturer | Rockford Fosgate |
| Item Weight | 15 pounds |
| ASIN | B0B3Z3LQD2 |
| Item model number | HD14-STG5 |
| Best Sellers Rank | #780 in |
| Date First Available | June 13, 2022 |
Loud Pipes, Custom Bikes. Baggers and Big Wheels.
Audio engineered to perform on the open road, our M5 audio kits are the loudest and clearest audio systems we’ve created.
The HD14-STG5 is a high-performance 6-speaker, 1600-watt amplified audio system with dual subwoofers built for select 2014 and newer Harley Davidson Road Glide and Street Glide Motorcycles.
This ultimate Stage 5 kit comes with a pair of our TMS65, 6.5" 2-way Element Ready Fairing speakers with integrated phase-aligned 25 mm tweeters. Also, we’ve included Saddlebag speakers, with our TMS69BL14, 6x9” Element Ready speaker retrofit kit for 2014+ factory Harley Davidson hardshell bags (non fiberglass models). All powered by our M5-800X4, an 800-watt 4-channel IPX6 Element Ready amplifier and RFK-HD14M5, amp install kit.
And for the next level audio performance, our stage 5 audio kit includes Rockford Fosgate's 800-Watt Dual 10" subwoofer system with an additional dedicated M5-800X4 amplifier! This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that.
Featuring a simple plug-and-play installation, paired with full throttle output, this audio system delivers an exceptionally superior on-bike audio experience like no other…
Designed and Built by Rockford Fosgate for Select Harley-Davidson models. Check out the Compatibility Chart Below to Match Your Model & Year. *Factory Harley-Davidson radio must be flashed to use this kit.
Rockford Fosgate Audio Kits - Full Throttle Output, So You Can Hear Your Music...Not The Road
Pre-Installation Advisory*
Factory radios on 2014 and newer Harley-Davidson audio systems use a 'high fidelity" EQ curve. Be sure to have an authorized Rockford Fosgate dealer flash your factory radio (to remove this EQ) before proceeding with installation. Failure to complete this process could result in damage to your speakers.
HD14-STG5
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for an easy install, all to ensure less time in the garage and more time out riding.
Element Ready: Purpose built for the harsh motorcycle environment. The speakers and amp are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Full Throttle Output: Audio engineered to perform on the open road. Speakers and amps are specifically designed and tuned to not only overcome wind, road, and exhaust noise, but to give you that unrivaled, open-road audio experience.
Rockford Factory Fit & Finish: Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to exact specifications, ensuring a custom look and feel.
Flexible Bass System: Sound when you want it, space when you need it. This patent pending design allows you to easily remove the subwoofers with no tools

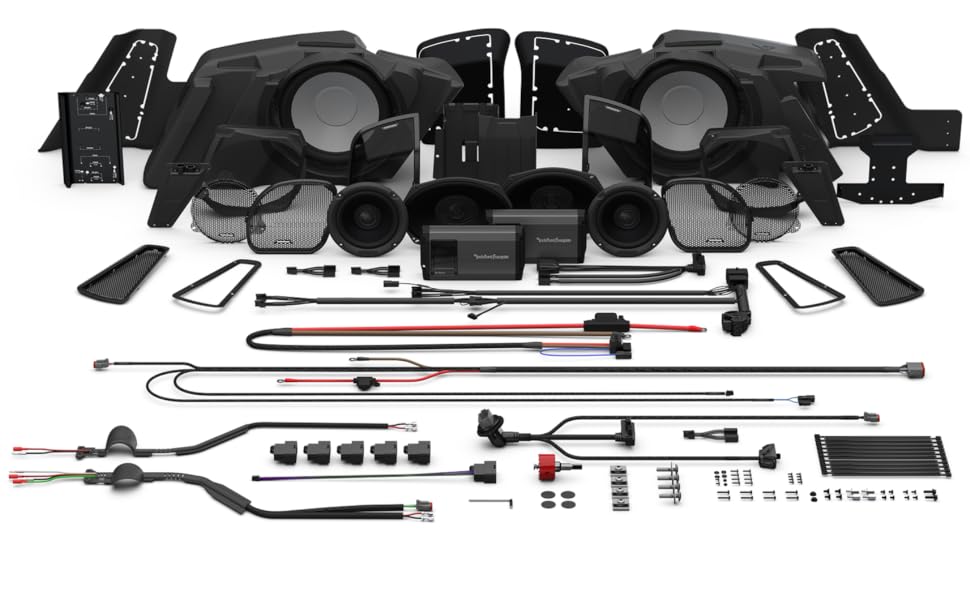

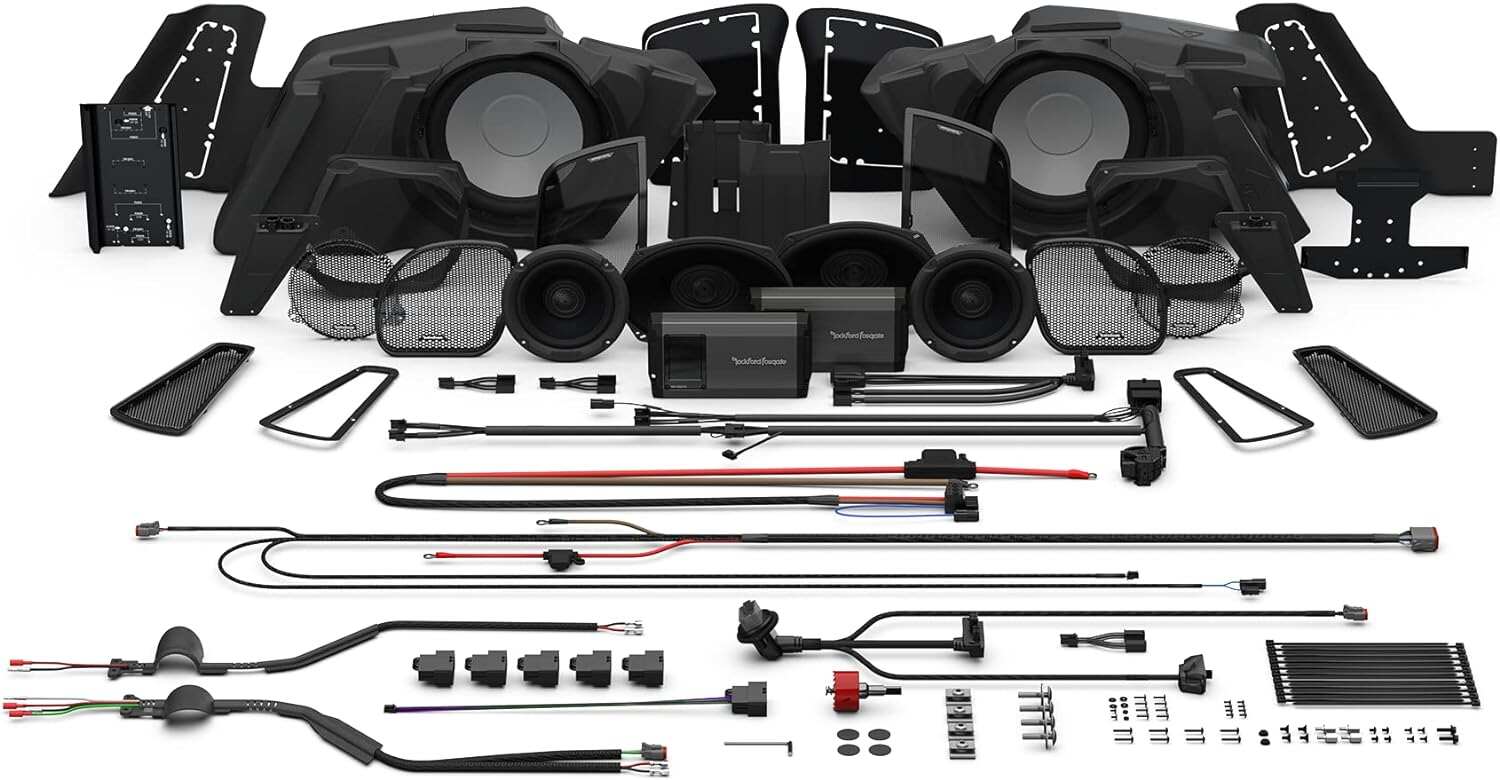

The HD14-STG5 Audio Kit Includes:

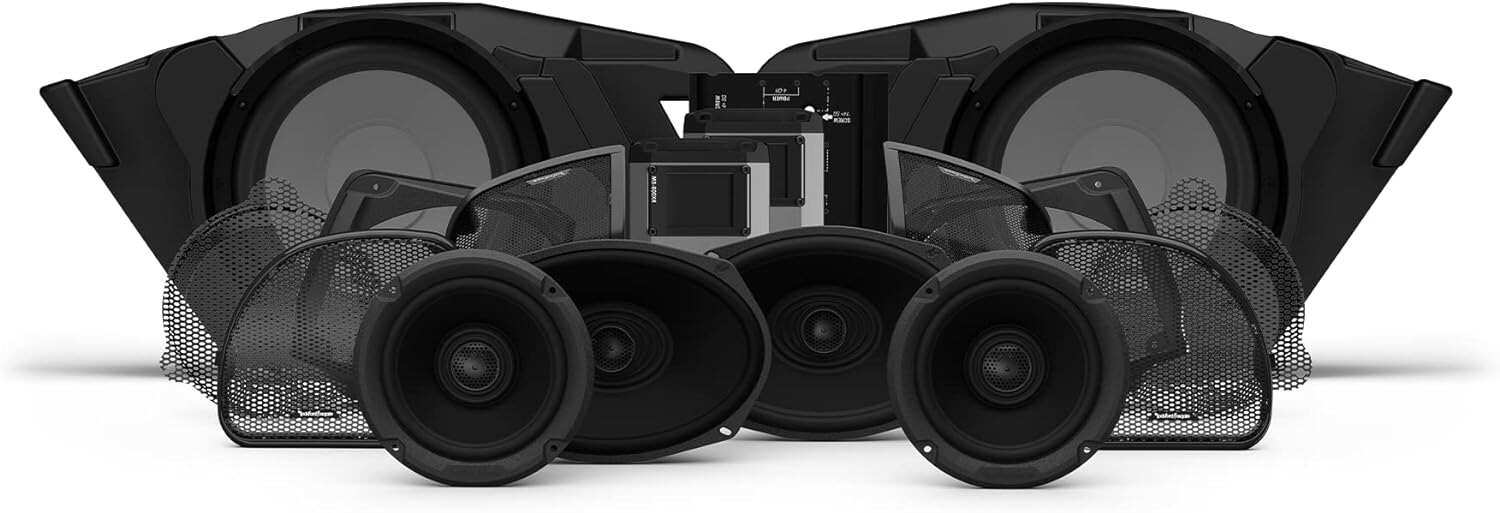

- Pair of Power TMS65, 6.5" 2-way Element Ready Fairing speakers with integrated phase-aligned 25 mm tweeter, and model specific grille inserts
- Pair of Saddlebag Speakers, with our TMS69BL14, 6x9” Element Ready speaker retrofit kit for factory Harley Davidson hardshell bags (non fiberglass models). Easy to install using our included cutting template and two-piece mounting system
- Our Dual 10” Saddlebag Subwoofer System, the HD14-SBSUB, with a patent pending design that allows you to remove one or both subwoofers easily with no tools, when needed. The sub enclosures creates dual air space to keep 6x9" saddlebag speakers separate from 10" subwoofers
- From our M5 Series, Two M5-800X4, 800-watt 4-channel IPX6 Element Ready amplifiers
- Two RFK-HD14M5, Amp install kits specifically built for the M5-800X4 on 2014+ Harley-Davidson models
- Y-adaptors included in amp install kit supports expansion of lower fairing or Tour-Pak speakers at a later time
- T-harness integration supports front/rear fader control (requires "Rockford Fosgate 2014+ All Bikes" flash)
- T-harness features loop-thru for Digital Signal Processor (Rockford Fosgate DSR1 sold separately)
- 90-degree harness included with amp install kit for Road Glide installations
- All hardware needed for installation
- Direct connect wiring harnesses for select Harley-Davidson models
2-Step COMPATIBILITY CHECK!!
- Step 1 - Confirm your Harley Davidson Motorcycle meets the below fitment criteria and you understand the use of this kit requires your factory HD radio to be flashed*
- Step 2 - Confirm your Harley Davidson Motorcycle Model and Year is compatible · (see chart below – only models/years listed are compatible with this specific audio kit)
STEP 1 – Fitment Criteria & Compatibility Notes for the HD14-STG5 Audio Kit:
- The included wiring harness is designed to interface only with factory Harley-Davidson radios (Must have: BOOM! Box 4.3, BOOM! Box 6.5GT, or BOOM! Box GTS)
- Requires factory Harley-Davidson radio to be flashed by an authorized Rockford Fosgate dealer or you will damage your speakers
- Saddlebag lid and subwoofer kits compatible only with ABS plastic, not fiberglass models
- Saddlebag lid kit not compatible with H-D Power Lock for Touring Luggage
- Stretched Saddlebags not optimized for sub system but could be made compatible with a Rockford Fosgate Support suggested harness brace
